SM 58
Specifications Type
Frequency Response Polar Pattern Sensitivity
(at 1,000 Hz Open Circuit Voltage) Impedance
Polarity Case Connector Connector Net Weight Dimensions
Includes Stand Adapter and Zippered Pouch
Includes 7.6 m (25 ft) XLR-Male to XLR-Female Cable, Swivel Adapter and a Zippered Pouch

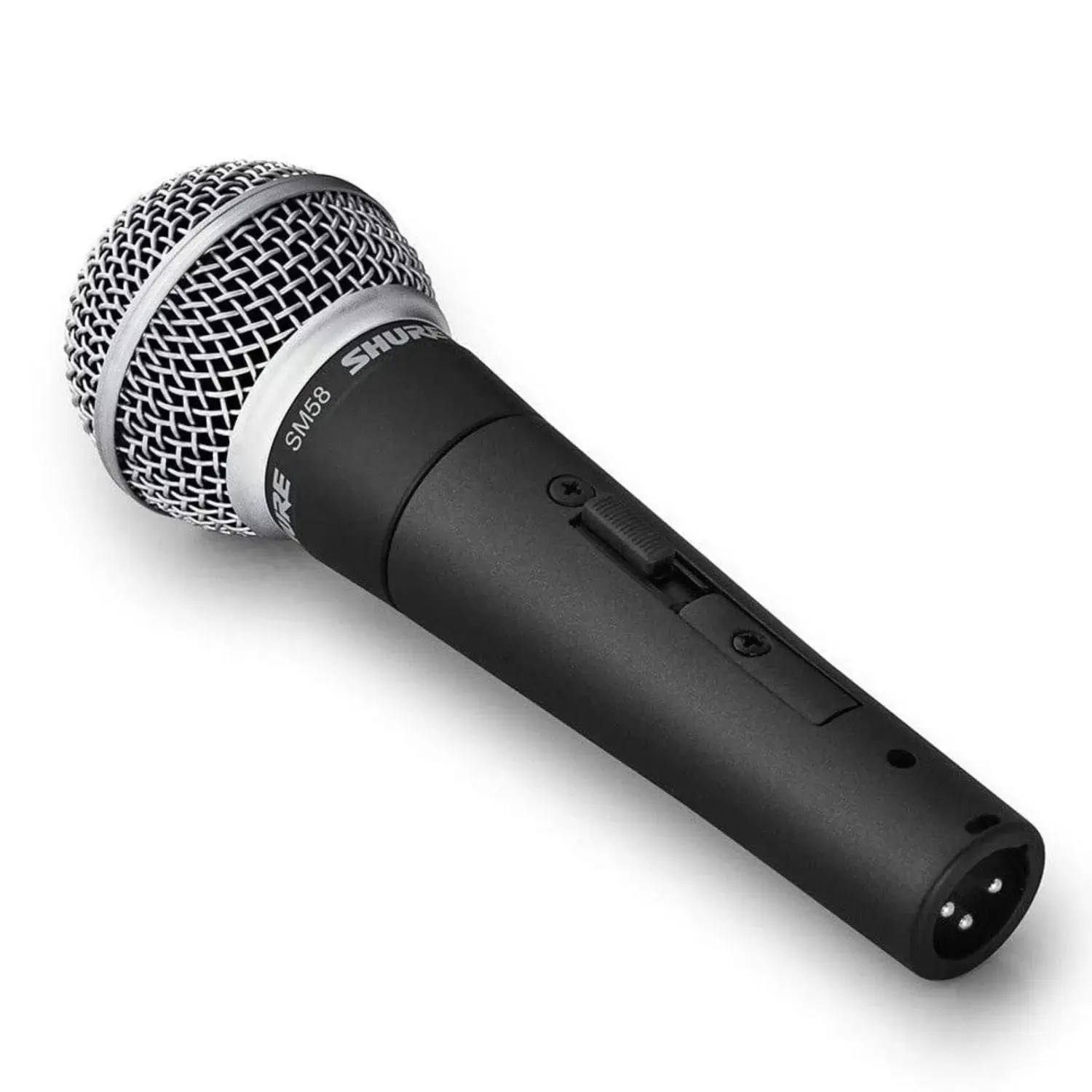

Includes Integrated On/Off Switch, Swivel Adapter and a Zippered Pouch
Dynamic
50 to 15,000 Hz
Cardioid
?54.5 dBV/Pa (1.85 mV) 1Pa=94dBSPL
Rated impedance is 150? (300? actual) for connection to microphone inputs rated low impedance
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
Dark gray, enamel-painted, die cast metal; matte- finished, silver colored, spherical steel mesh grille Three-pin professional audio connector (male XLR type) Three-pin professional audio connector (male XLR type) 298 grams (10.5 oz)
162mm(6-3/8in.)Lx51mm(2in.)W

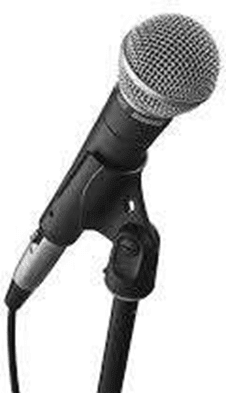

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath “pop” noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.
Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoor
