EV EKX-15P 15″
Frequency Response (-3 dB) 55 Hz – 18 kHz?
Frequency Range (-10 dB) 48 Hz – 20 kHz?
Maximum SPL 134 dB? Coverage (H x V) 90″ x 60″
Power Rating 1500 W
LF Transducer
EVS-15M 381 mm (15 in)
HF Transducer
DH-1M 1-inch titanium compression driver Crossover Frequency
1.7 kHz Connectors
(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure
15 mm plywood with EVCoat Grille
18 AWG steel with powdercoat Suspension
(8) M10 threaded mounting points Dimensions (H x W x D)
685 mm x 432 mm x 429 mm (27 in x 17 in x 17 in) Net Weight
24.4 kg (53.9 lb)
Shipping Weight
29.5 kg (65.0 lb)
Power Consumption
1.8 A?

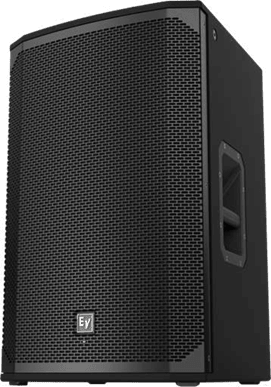

Unleash powerful sound with the EKX-15P, a 15″ powered loudspeaker featuring QuickSmartDSP for easy control via a single-knob interface and LCD. Its 1500 W Class D amplifier delivers a peak SPL of 134 dB, while intelligent thermal management ensures reliability in any environment.
The EV-patented Signal Synchronized Transducers (SST) waveguide provides precise coverage in a lightweight, compact 15-mm wood enclosure. With eight M10 threaded mounting points, aluminum pole mounts, and a durable EVCoat finish, it’s both rugged and portable.
As the newest member of the Electro-Voice portable loudspeaker family, the EKX series combines legendary EV sound quality with cutting-edge technology. Perfect for musicians/DJs and live/club/installed sound applications, the EKX-15P stands out in versatility and performance. Elevate your events with the EKX-15P— where innovation meets exceptional sound.
